Allegro 9200-01A 1 Worker Full Mask Breathing Air Blower Respirator System With 50’ Hose

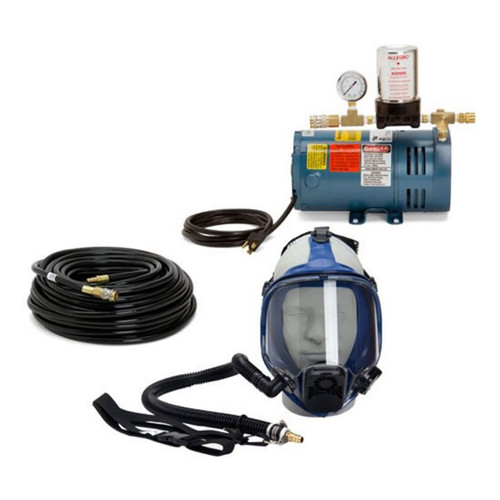

The Allegro 9200-01A One-Worker Full Mask Breathing Air System provide a portable air source for one respirator user. It includes one NIOSH approved full mask supplied air respirator, a blower, flow meter, and one 50 foot (15.2 m) breathing air hose. The Breathing Air Blower is a portable, lightweight, fresh air supply system which provides comfortable and safe breathing air for industrial users who require an OSHA compliant fresh air supply system while maximizing productivity. The Breathing Air Blower improves the worker’s safety and comfort, it also helps reduce their frequency and duration of breaks on the job. This self-contained, low maintenance unit includes a removable and washable filter and is contained in a rugged roto-molded plastic housing for longer lasting durability.

Features:

• This new modern blower style does not add heat to the air as with traditional ambient air pumps improving user comfort.
• The blower provides enough flow for an additional user to be added if needed.
•  Kit contains everything needed for a single worker to begin use right away.

Motor/Construction:

• 120V, 60 Hz
• 3.8A
• CFM output regulated by panel mounted speed control
• Exterior manifold to allow for the use of multi-air lines (single/double)
• Roto-molded, rugged double wall housing • Unit is self-contained and requires little maintenance (exception of removable, washable filter)

Blower Dimensions:

• Height 11.87” (30.1 cm)
• Depth 12.5” (31.8 cm)
• Width 15” (38.1 cm)
• Weight 12 lbs. (5.4 kg)

Warning:

• The PN 9815-EF Breathing Air Blower must be placed in clean, Grade “D” breathable air (as specified by 29 CFR 1910).

Notes:

• Contributing factors to the output temperature include, but are not limited to: length of the hose, ambient temperature, and outside temperature where the hose is placed. Also, please remember that a small temperature difference of 3° F to 10° F (-16.11° C to -12.22° C) is very significant when the air is blowing directly onto the user’s face and into breathing passages.
• Does NOT add heat to the breathing air
• Flow meter is included to verify NIOSH flow setting for mask & hoods
