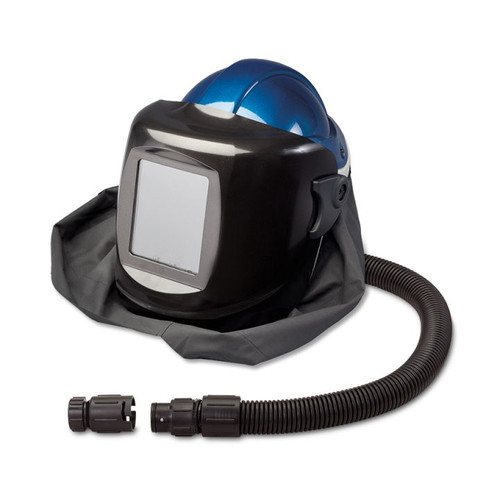

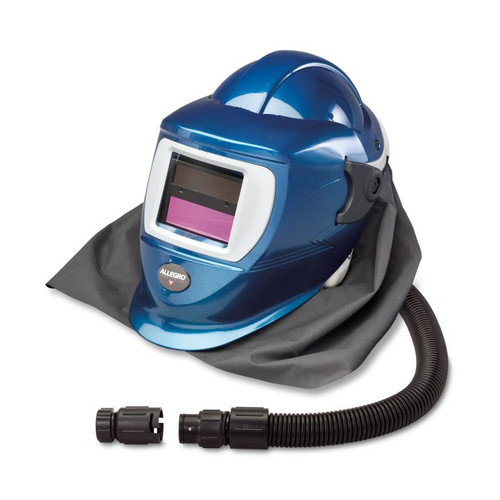

Allegro’s Deluxe Supplied Air Shield and Welding Helmet is performance proven and a cost effective system used by foundries, aluminum plants, mines, chemical plants, refineries, auto manufacturers, metal working and fabrication. The Supplied Air Respirator delivers a constant and powerful supply of breathable from a clean air source. They include one or two shields and welding helmets, a ¾ hp or 1½ hp ambient air pump and 50 feet of breathing hose. NIOSH approved/ANSI certified “all in one” system provides respiratory, head, eye and face protection.

AIR SHIELD/HELMET:

• NIOSH approved
• Head protection: ANSI Z89.1 Type 1 Class G
• Made of ABS
• Low profile and lightweight (3.620 lbs) (visor alone: 0.480 lbs)
• Quick release suspension for easy cleaning
• Made in USA

LENS (SHIELD):

• Eye Protection: ANSI Z87.1-2003
• Protection Factor: APF 1000
• Made of anti-fog polycarbonate
• Viewing area: 15” X 6.75” (38.1cm X 17.1cm)

VISOR (WELDING HELMET):

• Made of Nylon 6
• Large #10 lens included
• 4” X 4.75” (10.1cm X 12cm)
• Optional ADF lens sold separately

ADF LENS: (Sold Separately)

• ADF lens uses IntelliSense technology that allows unit to detect welds less than 5 amps
• Four redundant sensors in a staggered design eliminate blocked sensors
• Versatile cartridge fits in most 4” x 5” vertical windows
• Replaceable lithium batteries
• Smart View LCD for fingertip control information
• Low battery indicator
• Soft touch control panel eliminates contaminates

NECK CAPE:

• Made of Stedprene (a fire retardant, polyurethane coated poly cotton fabric)
• Added comfort
• Protects user’s neck from falling debris

DOWN TUBE & FLOW CONTROLLERS:

• Corrugated flexible and lightweight glass-filled nylon for greater comfort and less fatigue
• Easily interchangeable to Low Pressure or High Pressure. Four options available: Low Pressure Flow Adapter (P/N 9910-11) (10-43 psi), High Pressure Flow Control Valve (P/N 9992) (25-46 psi), Personal Cooler (P/N 9991) (72-98 psi), Air Temperature Controller (P/N 9990) (90-120 psi)
• Low profile nylon adjustable waist belt
