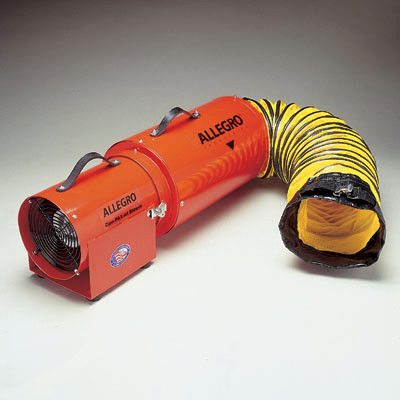

Allegro 9534-15 AC COM-PAX-IAL Blower 8" With Canister 15
This lightweight and compact COM-PAX-IAL blower can be an all-in-one ventilation system sold with quick-connect 15’ or 25’ ducting canister which attaches quickly without tools with Cam-lock latches.
Lightweight and compact design allows for easy portability without sacrificing performance. Certified to CSA Standard C22.2 No.113.
Features and Specs:
CONSTRUCTION:
- Complete unit epoxy powder coated orange
- 15 gauge cold rolled steel housing with welded motor mount construction
- 20 gauge steel canister
- Available with 15’(4.57m) or 25’(7.62m) ducting and canister
- Enclosed wide base for greater stability
- Steel/chrome plated grill
- Carry handle made of 3-ply rubber belting
- Equipped with four rubber feet
MOTOR:
- HP: 1/3 HP
- Certifications: UL Recognized, CSA Certified
- Volts: 115V AC Single Phase
- RPM: 3200 (Loaded at 120 Volts, 60 Hz)
- Current Draw: 3.6A (Loaded at 120 Volts, 60 Hz)
- Cord: 6’ (1.82m) SJOOW 16/3 AWG neoprene, 300V medium duty
- Plug: NEMA 5-15 125V AC
DUCTING:
- Retractable, non-collapsible design
- Single-ply, PVC coated, vinyl and polyester materials, temperature resistant up to 180°F (82.2°C)
- Yellow color with black weather-strip and integrated nylon straps
- Class 1 hard drawn spring steel wire helix that meets ASTM specs
FAN:
- Glass reinforced polypropylene (PPG) six blade fan with aluminum hub
