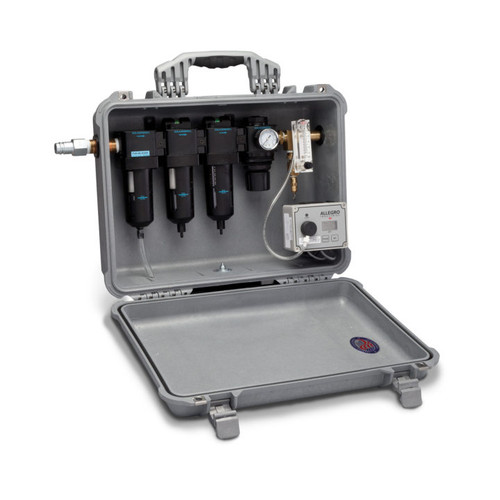

Our single outlet and single inlet inline filter panels provide airline respirators a portable source of breathable air while ideally designed for filtering air anywhere within the airline system downstream from outlets. We offer our inline filter panels in both Carry-Air™ and Wall-Air™ configurations. All models meet NIOSH requirements of point-of-attachment. The Carry-Air™ models provide up to 8 airline respirators a portable source of up to 100 CFM of breathable air from 5-125 psig. They’re house in a rugged Pelican case for portability and protection. They also include a support stand for stability and up-right operation. Available with CO monitor.

The AC/DC powered Wall-Air™ models provide up to 12 airline respirators a portable source of up to 150 CFM of breathable air from 5-125 psig. These units are easily mounted on any wall to keep them out of the way in your workshop area. Available with or without CO monitors.

CONSTRUCTION:

• 12 gauge black powdered coated steel mounting bracket
• All brass plumbing with quick-disconnect Hansen couplers
• Outlet side: ¾” NPT male nipple, made of Brass

CO MONITOR:

• Power source: 115V AC to 9V DC power adapter for continuous power supply.
•  9V DC Alkaline battery (primary or as back-up for AC adapter).
• Alarm Setting: 10 PPM (Canada: 5PPM)
• External Connections: Optional Strobe Light Alarm.
• Audible: 90 decibel Piezo Alarm.
• Visual: External power LED light signal.
• Sensor: Electrochemical replaceable
• Display: Liquid crystal
• Keys: Mode & Set
• Modes: Normal Operation, Peak, Battery Charge and Calibration mode.
• Calibration: Self adjusting calibration to 20 PPM CO

FILTRATION SYSTEM:

• First Stage: 5 micron particulate filter element and automatic mechanical drain
• Second Stage: 0.010 micron coalescing filter element and manual drain
• Third Stage: 0.003 micron activated carbon filter element and manual drain
• Regulator: High pressure, adjusting pressure knob, 0-160 psi (0-11.03 bar) pressure gauge and external relief valve
• Flow Meter: Adjustable metering valve, range from 0.0-1.0 LPM
